Product Description
The Teltonika TRB145 is a compact, industrial-grade LTE Cat 1 gateway designed for M2M and IoT applications requiring reliable cellular connectivity in harsh environments. It features a single Fast Ethernet port, a Micro-USB interface, and configurable digital input/output (DIO) for versatile integration into industrial systems. Its rugged aluminum housing and wide operating temperature range ensure durability and performance in demanding remote monitoring and control scenarios.
| Feature | Specification |
|---|---|
| Cellular Module | LTE Cat 1 (DL up to 10 Mbps, UL up to 5 Mbps), 3G, 2G |
| CPU | ARM Cortex-A7 1.2 GHz |
| Memory | 128 MB DDR3 RAM, 512 MB NAND Flash |
| Ethernet Ports | 1 x 10/100 Mbps RJ45 |
| SIM Slots | 1 x Mini SIM (2FF) |
| Antenna Connectors | 1 x SMA for LTE |
| Power Input | 9-30 VDC (2-pin industrial screw terminal) |
| I/O | 2 x Digital configurable Input/Output (on screw terminal) |
| Other Ports | 1 x Micro-USB |
| Operating Temperature | -40 °C to 75 °C |
| Enclosure Material | Anodized Aluminum |
| Dimensions (L x W x H) | 74.5 x 64.5 x 25 mm |
| Operating System | RutOS (OpenWrt based Linux OS) |

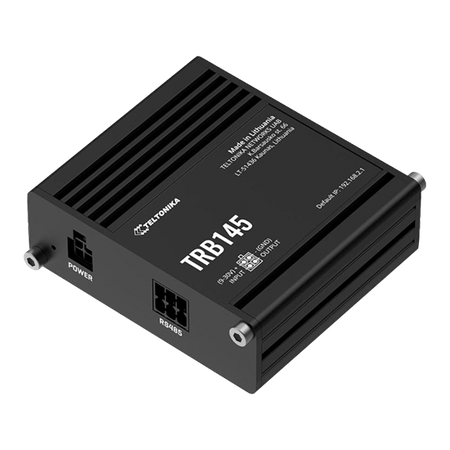

Teltonika TRB145
CODE:
teltrb145
EAN:
4779027312415
€100.00
VAT not included
In stock: 10
-
Standard delivery FedEx and DHL
-
Express delivery FedEx and DHL
-
All devices are 100% new and EU original
